Below are some specifications of the different rub rail we carry.  Scroll down and browse
or if your looking for a specific item you can click the link below.

Hollow Rub Rail
Solid Rub Rail
Rub Strakes
Rub Rail Ends
Hatch Binding & Seal Trim

Hollow Rub Rail  Counter Sunk







Part No.
0550-062 .062 X 1/2 x 12' (No.  8 screw holes on 6" centers)
1100 - 062 .062 x 3/4 x 12', 16'  or 20' w/holes  (No.  8 screw holes on 6" centers)
1100 - 077 .077 x 3/4 x 12', 16' or 20'  w/holes (No.  8 screw holes on 6" centers)
1200 - 077 .077 x 1" x 12', 16' or 20'  w/holes (No. 10 screw holes on 6" centers)
1000 - 077 .077 x 1-1/4" x 12', 16' or 20'  w/holes (No. 10 screw holes on 6" centers)
1800 - 077 .077 x 1-1/2" x 12', 16' or 20'  w/holes (No. 10 screw holes on 6" centers)
2000 - 077 .077 x 2" x 12', 16' or 20'  w/holes (No. 10 screw holes on 6" centers)
2500 - 077 .077 x 2-1/2" x 12', 16' or 20'  w/holes (No. 10 screw holes on 6" centers)

Back to Top

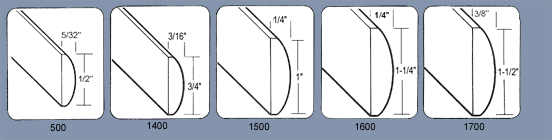

Solid Rub Rail  Counter Sunk

Part No.
  500 - 150 5/32" x 1/2 x 12'  w/holes (No.   6 screw holes on 6" centers)
1400 - 187 3/16" x 3/4" x 12' or 16' w/holes (No. 10 screw holes on 6" centers)
1500 - 250 1/4" x 1" x 12, 16' or 20'  w/holes (No. 12 screw holes on 6" centers)
1600 - 250 1/4" x 1-1/4" x 12' or 16' w/holes (No. 12 screw holes on 6" centers)
1700 - 375 3/8" x 1-1/2" x 20' w/holes (No. 12 screw holes on 6" centers)
2000 - 500 1/2" x 2" x 20' w/holes (No. 14 screw holes on 8" centers)

Back to Top

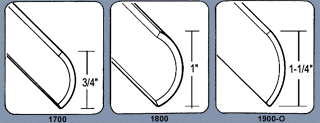

 Stainless Steel (T304) Rub Strakes

Part No.
1700 - 6 3/4" x   6" Polished
1700 - 8 3/4" x   8" Polished
1700 - 12 3/4" x 12" Polished
1700 - 18 3/4" x 18" Polished
1700 - 24 3/4" x 24" Polished
1700 - 36 3/4" x 36" Polished
1800 - 12 1" x 12" Polished
1800 - 24 1" x 24" Polished
1800 - 36 1" x 36" Polished

Back to Top

 Stainless Steel (T304) Rub Rail Ends




Part No.
2000 - 12 3/4" x 12" Polished (No.   8 screw)
2100 - 12 1" x 12" Polished (No. 10 screw)
2200 - 12 1-1/4" x 12" Polished (No. 10 screw)

Back to Top

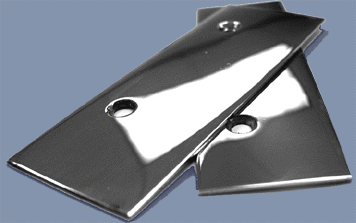

 Stainless Steel (T304) Hatch Binding & Seal Trim

Part No.
2900 - 06 .051 x 1-1/4" x 6' Polished (No. 6 screw holes on 2" centers)
2900 - 10 .051 x 1-1/4" x 10' Polished (No. 6 screw holes on 2" centers)
3000 - 06 .051 x 1-1/2" x 6' Polished (No. 6 screw holes on 2" centers)
3000-10 .051 x 1-1/2" x 10' Polished (No. 6 screw holes on 2" centers)
SPECIAL ITEMS ARE AVAILABLE UPON REQUEST
